CNC milling vertical

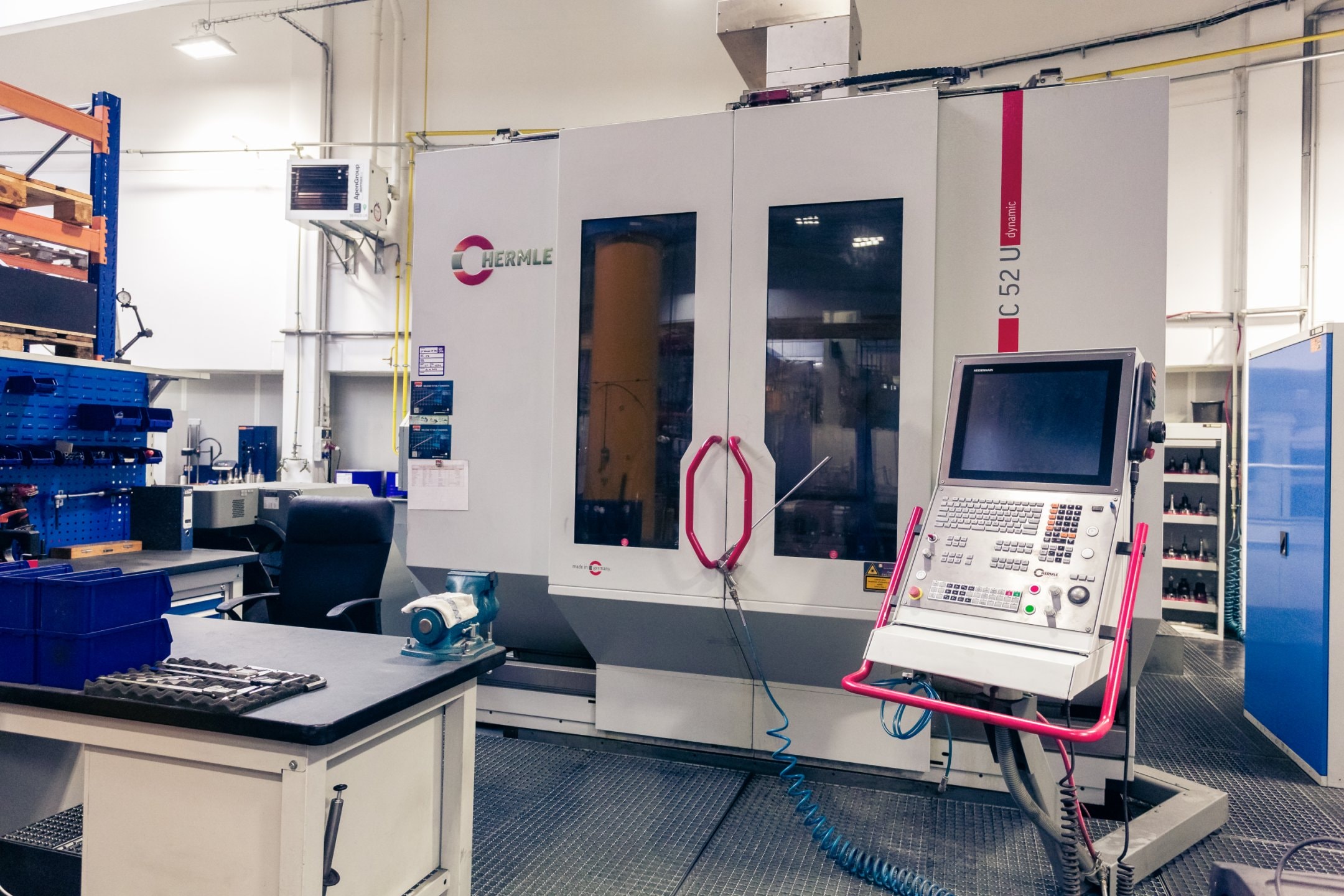

Hermle C 52 U
is a high-performance vertical five-axis milling centre with a tilting rotary table.
The CNC control system allows machining even spatially complex shapes, where the tool follows the path created as output from a 3D CAM program.
.jpeg)
| Technical data Hermle C 52 U | |
|---|---|
| Clamping table size | 1 150 x 900 mm |
| Maximum table load | 2 000 kg |
| X, Y, Z axis drives | 1 000 x 1 100 x 750 mm |
| Number of controlled axes | 5 |
| Collision circle | Ø 1290 mm |
| Spindle speed | 14 000 rpm |

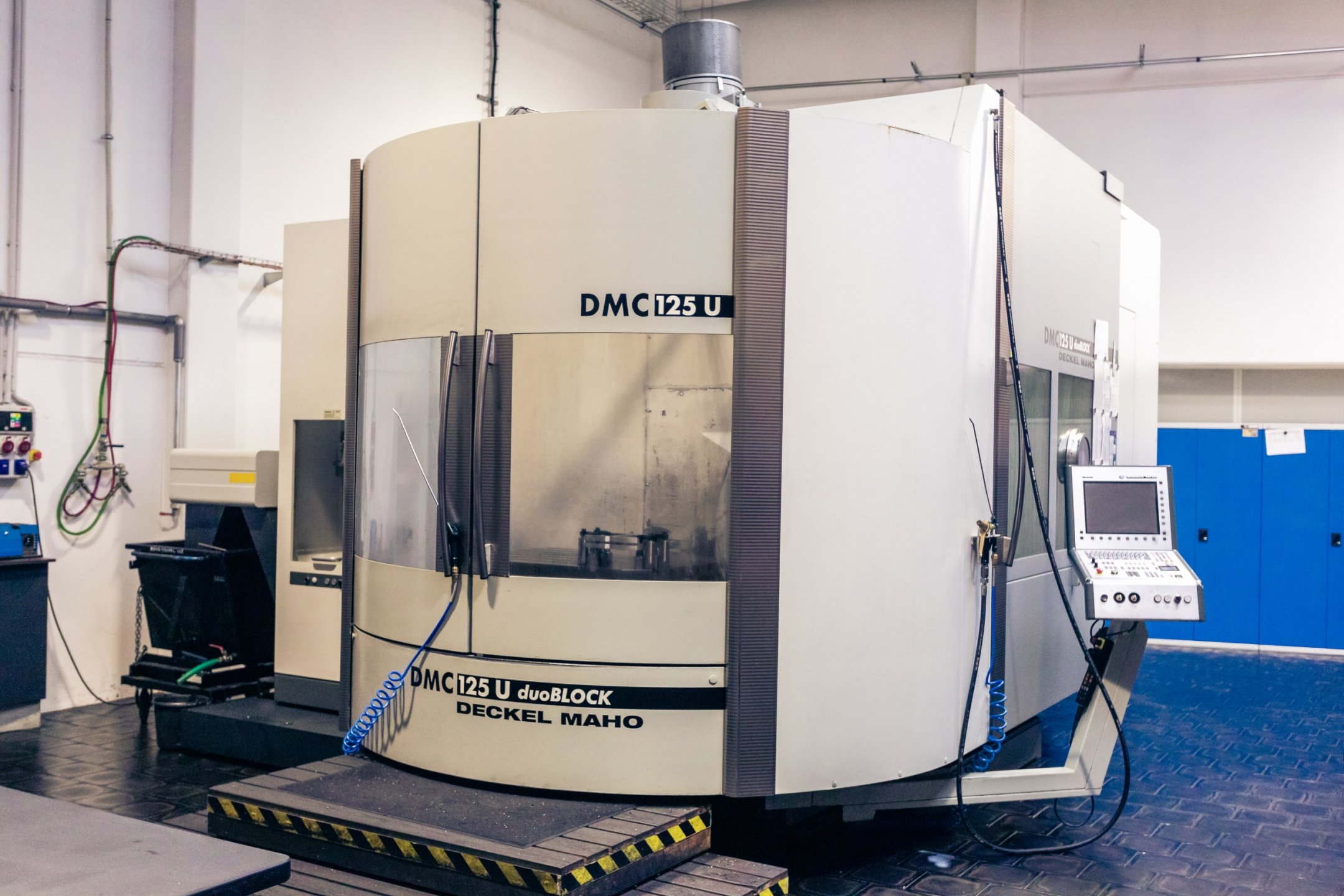

DMC 125 U - double pallet
is a machining centre predestined for efficient machining with high cutting performance and high precision.
The machine functions are controlled by a CNC control system that allows machining even spatially complex shapes, where the tool follows a path created as output from a 3D CAM program.
.jpeg)
| Technical data of the DMC 125 U | |
|---|---|
| X-axis | 1 200 mm |
| Y axis | 1 000 mm |
| Z axis | 900 mm |
| Pallet clamping area | 1 000 x 800 mm |
| Spindle speed | 10 000 rpm |
| Number of controlled axes | 5 |
| Maximum workpiece weight | 1 500 kg |
Trimill Depo 5020
is a highly productive machine for complex chip machining.
The machine functions are controlled by a CNC control system that allows machining even spatially complex shapes, where the tool follows a path created as output from a 3D CAM program.
| Technical data Trimill Depo 5020 | |
|---|---|
| X-axis | 2 000 mm |
| Y axis | 1 200 mm |
| Z axis | 800 mm |
| Maximum table load | 12 000 kg |
| Clamping surface | 2300 x 1600 mm |
| Spindle speed | 12 000 rpm |
| Number of controlled axes | 4 |

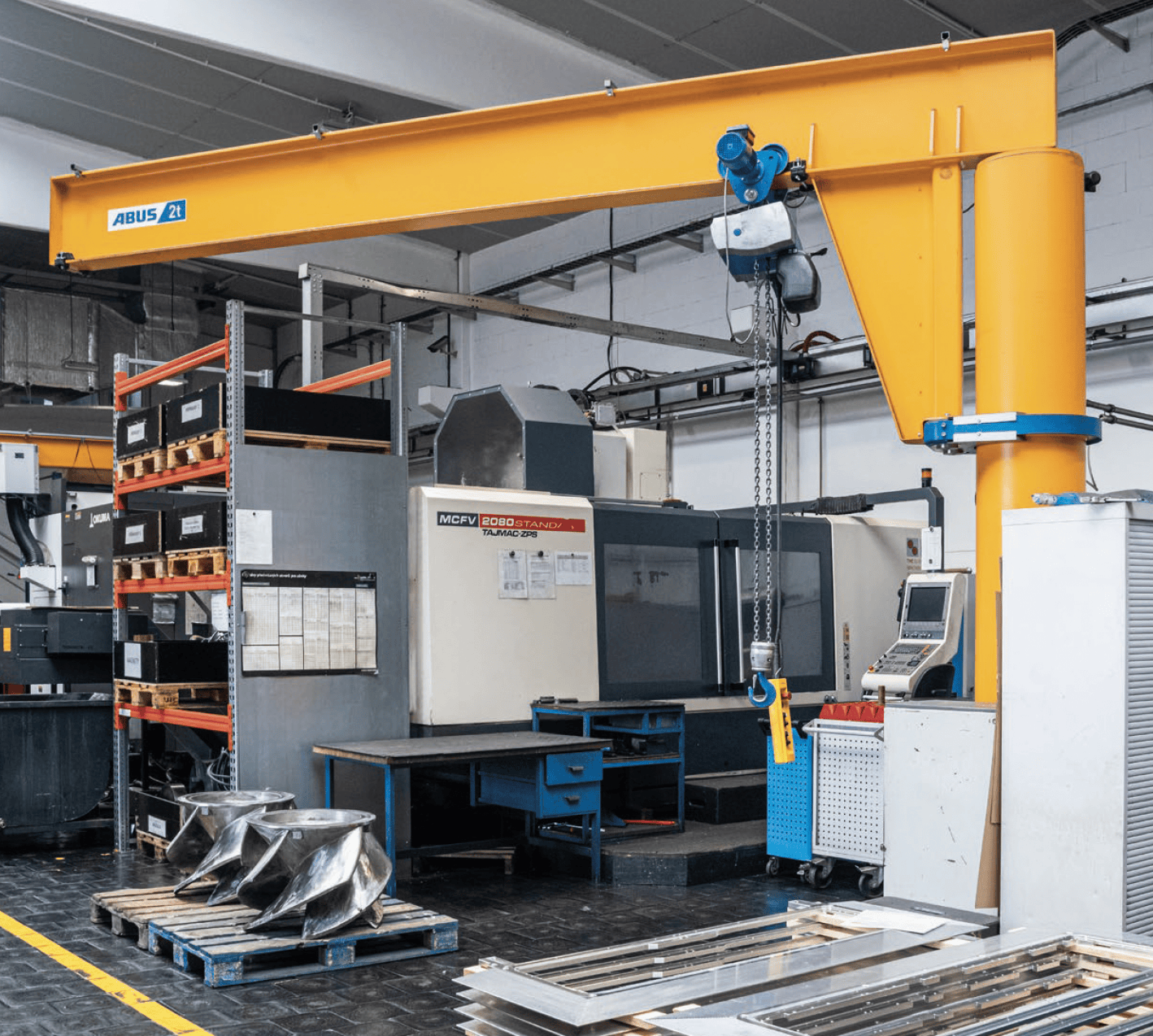

MCFV 2080
is a highly productive machine for complex chip machining.
The machine functions are controlled by a CNC control system that allows machining even spatially complex shapes, where the tool follows a path created as output from a 3D CAM program.
| Technical data MCFV 2080 | |
|---|---|
| X-axis | 2 030 mm |
| Y axis | 810 mm |
| Z axis | 810 mm |
| 4th axis | Diameter 750 x 1 500 mm |
| Maximum table load | 3 000 kg |
| Spindle speed | 8 000 rpm |
| Technical data Hermle C42 U MT | |
|---|---|
| Maximum working diameter | 800 mm |
| Maximum machined diameter | 800 mm |
| Maximum Z-axis height | 520 mm |
| Maximum speed | 15 000 rpm |
| Speed / C axis | 800 rpm |
| Number of pallets | 5 |
| Maximum table load during turning | 700 kg |
| Maximum table load for milling | 1 400 kg |

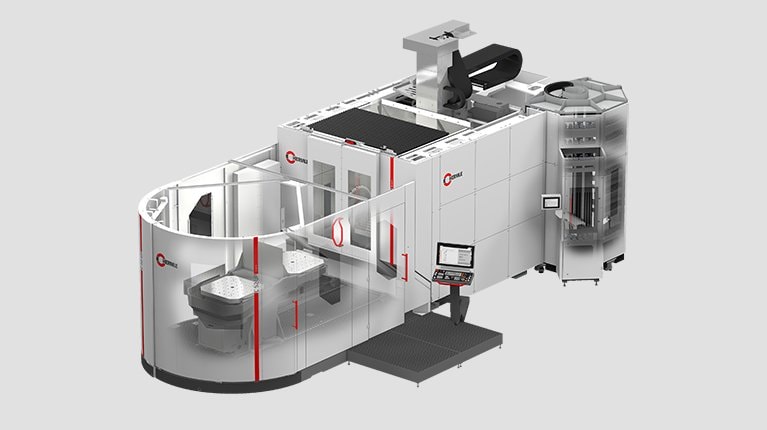

Hermle C 52 U MT
is a high-performance vertical five-axis milling centre with tilting rotary table and pallet changer.
The CNC control system allows machining even spatially complex shapes, where the tool follows the path created as output from a 3D CAM program.
| Technical data Hermle C 52 U MT | |
|---|---|
| Runway | 1 000 x 1 100 x 750 mm |
| Maximum table load | 2 000 kg |
| Spindle speed | 14 000 rpm |
| Body | Ø 1 100 / H 810 mm |
| Vertical distance of table | max. 950 mm |
| Collision ring | Ø 1 290 mm |
| Tilting turntable | Ø 1 000 mm |
| Number of pallets | 2 |
| Maximum table load during turning | 1000 kg |
| Maximum table load for milling | 2000 kg |

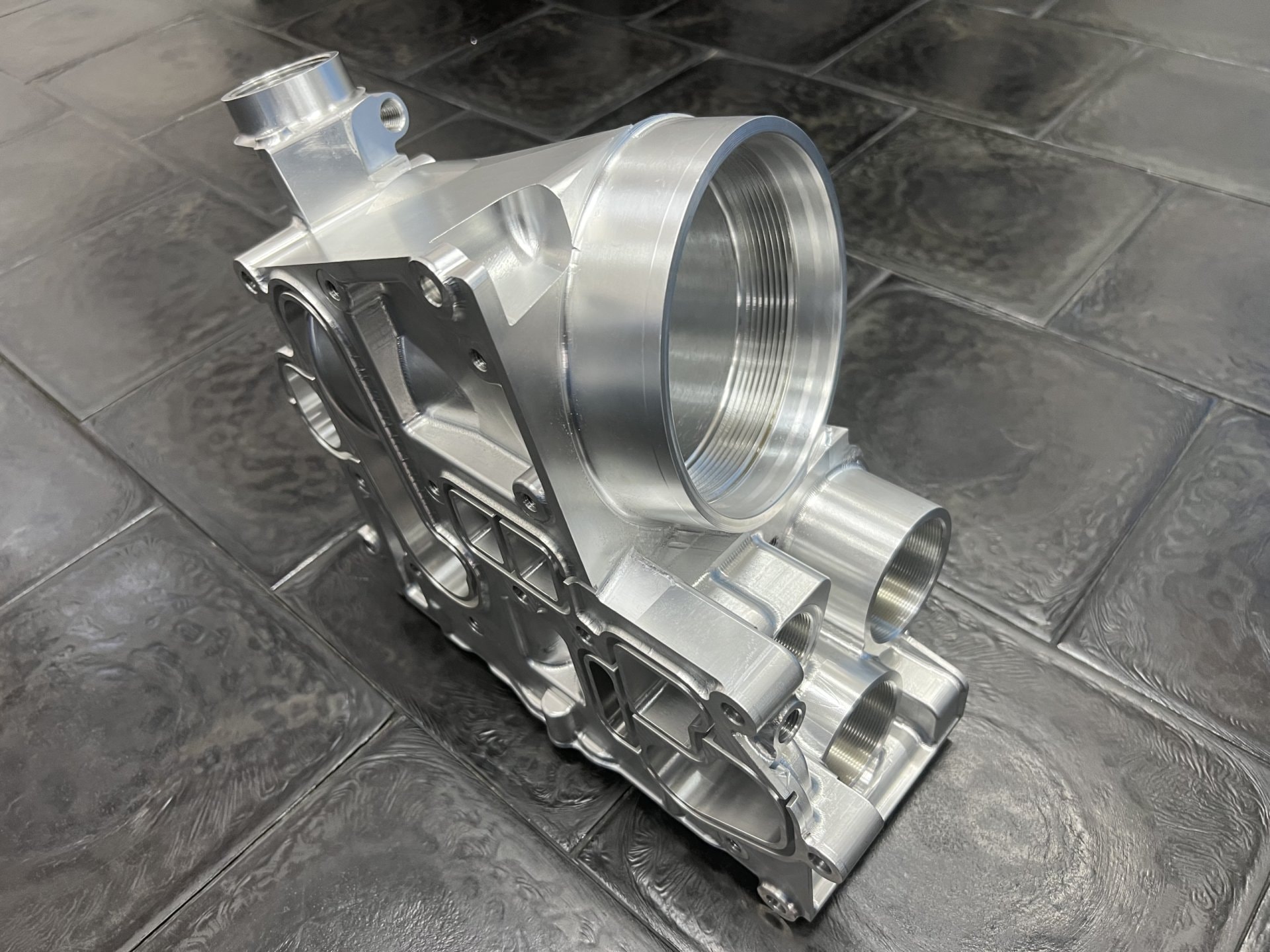

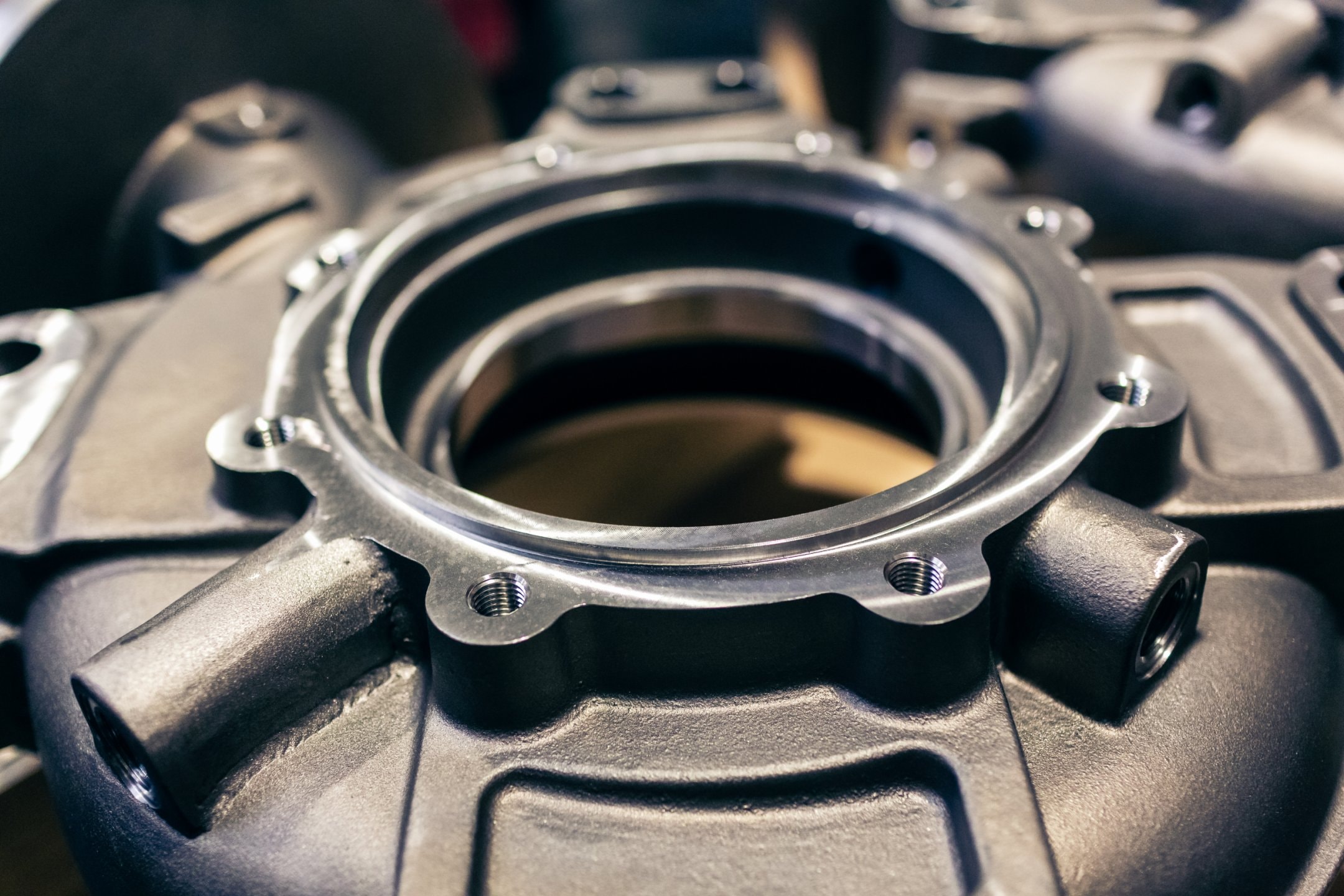

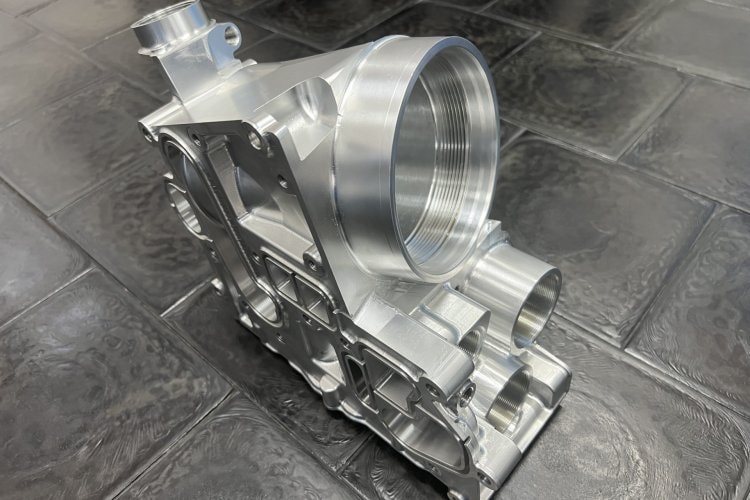

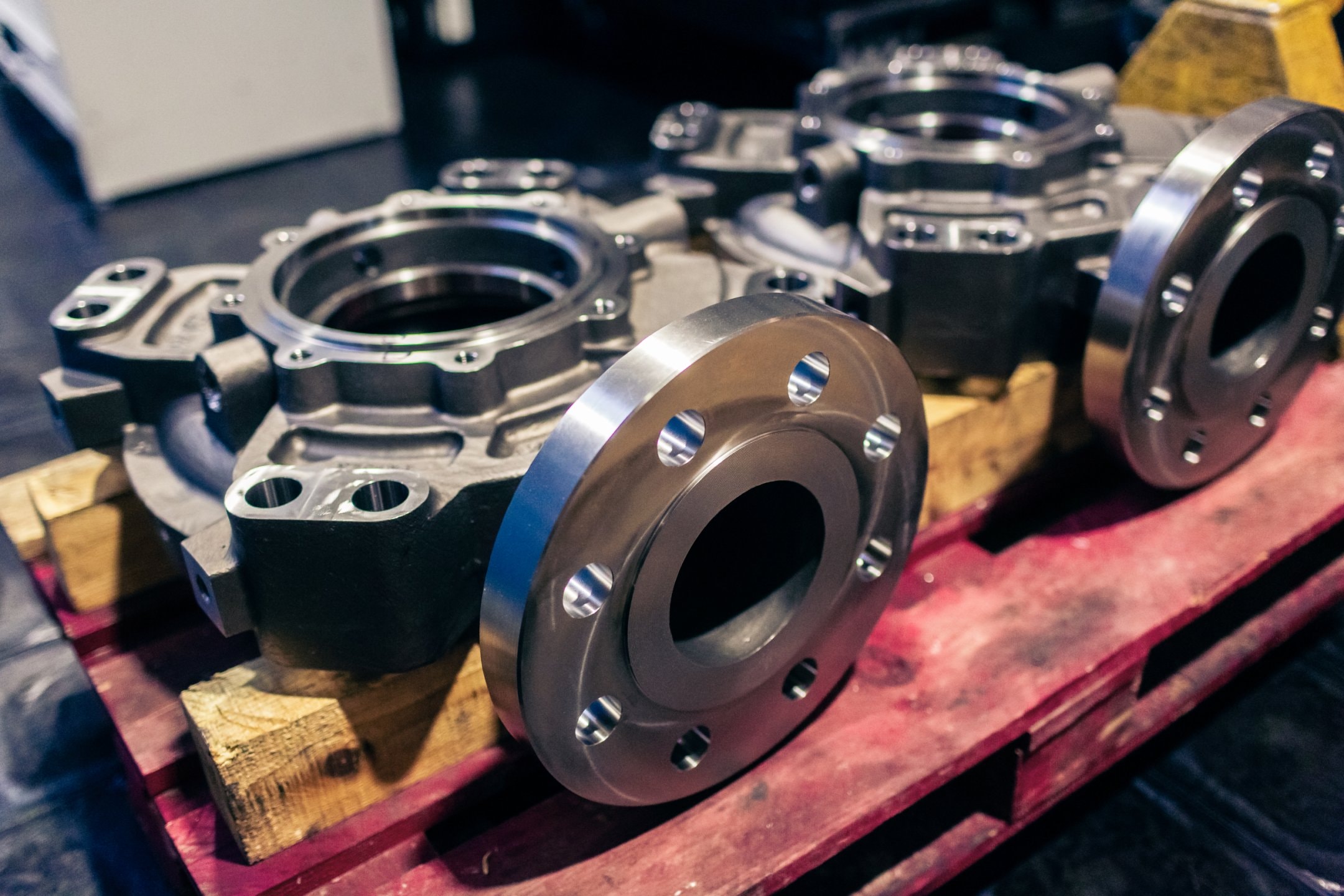

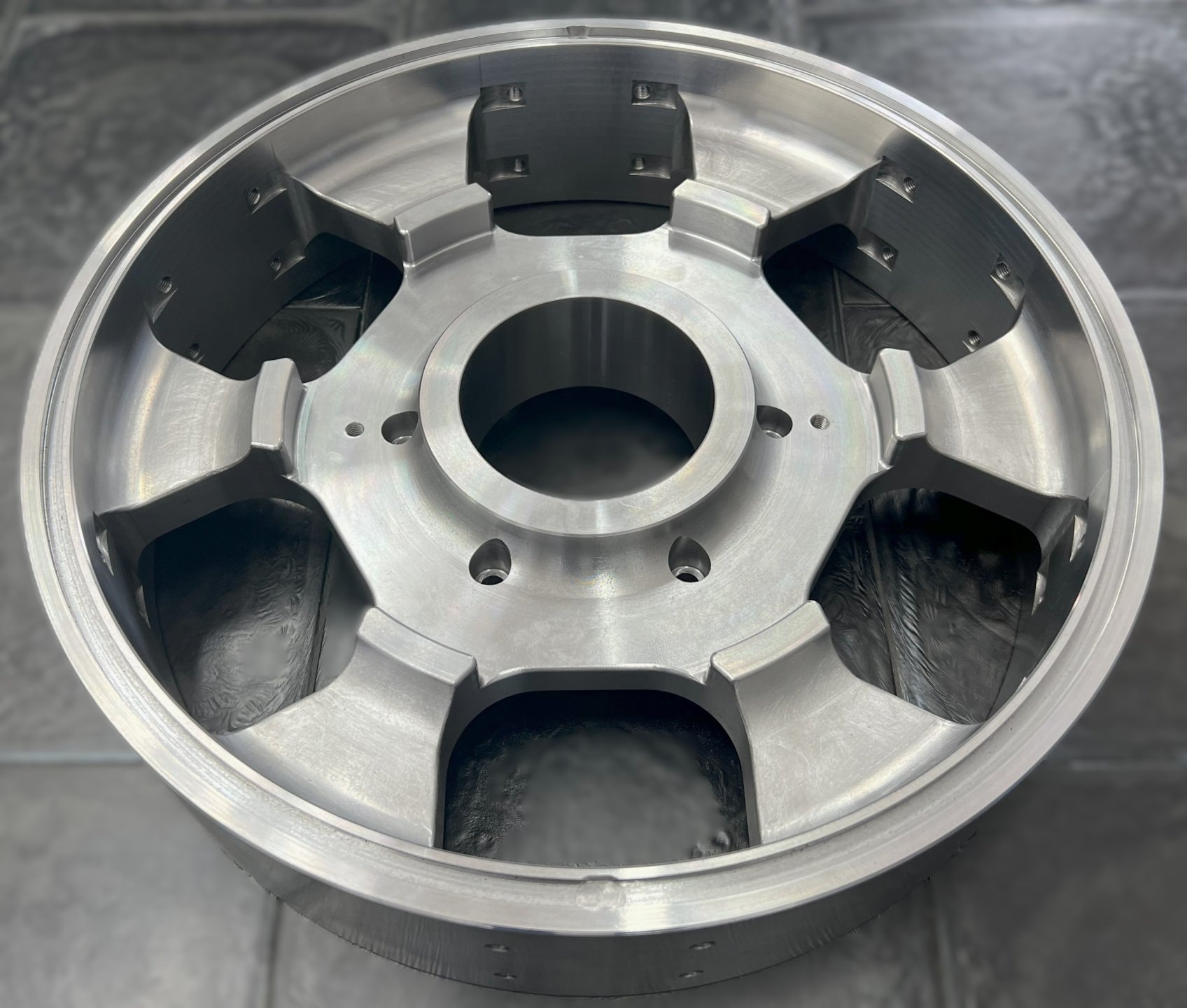

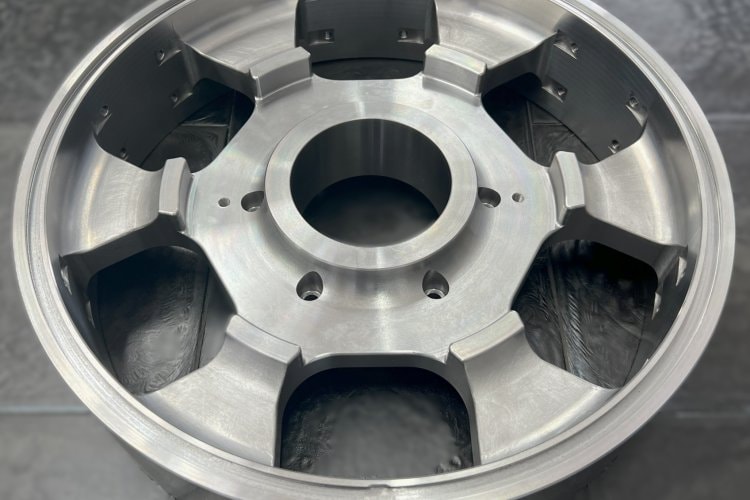

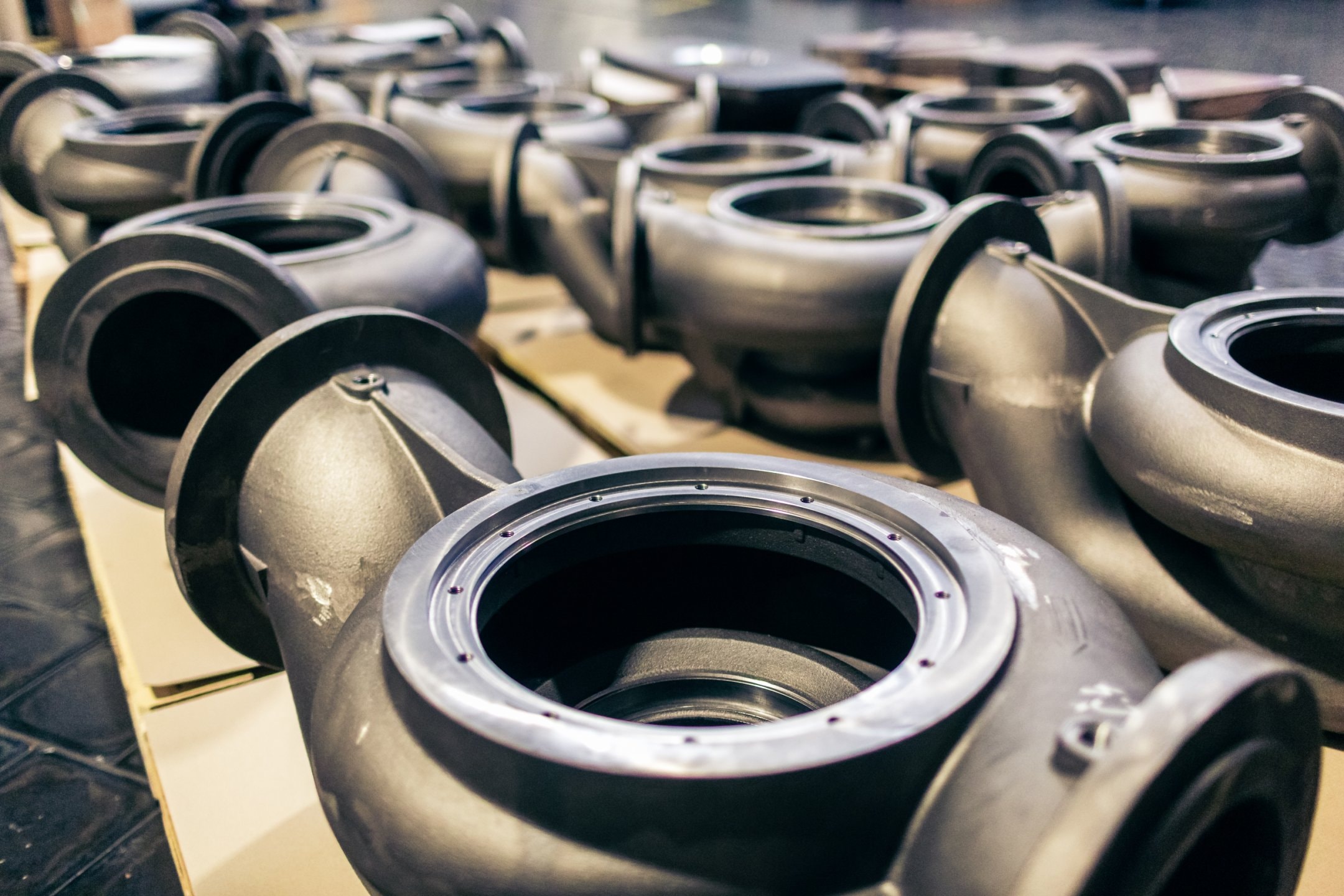

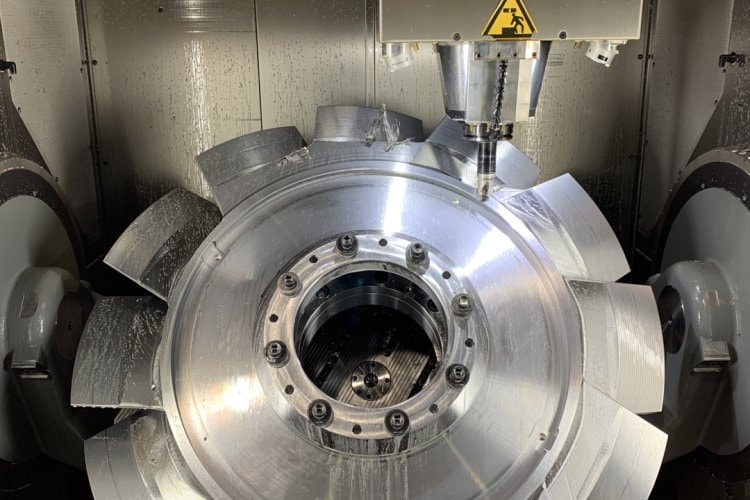

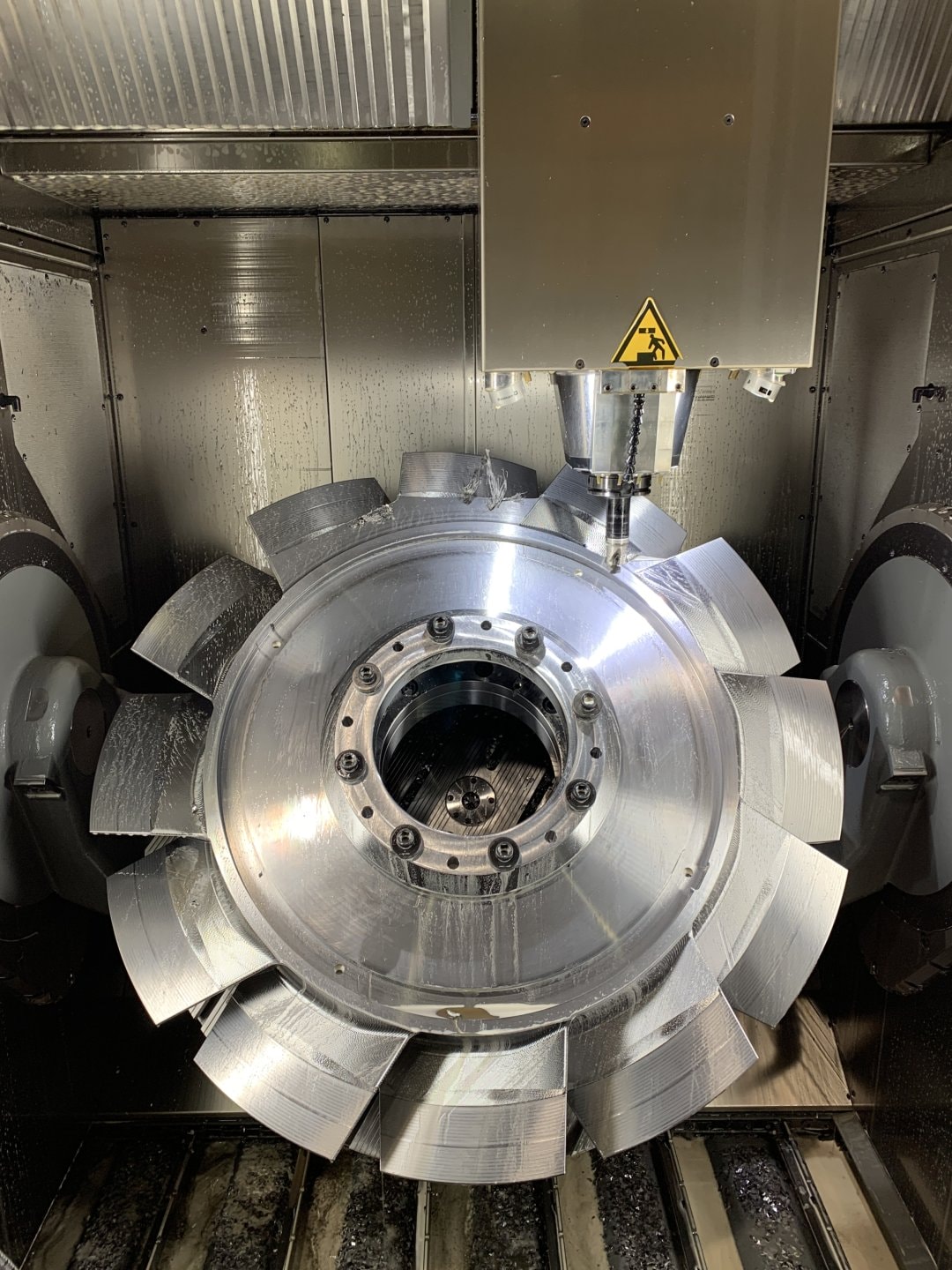

Sample of products
