CNC milling horizontal

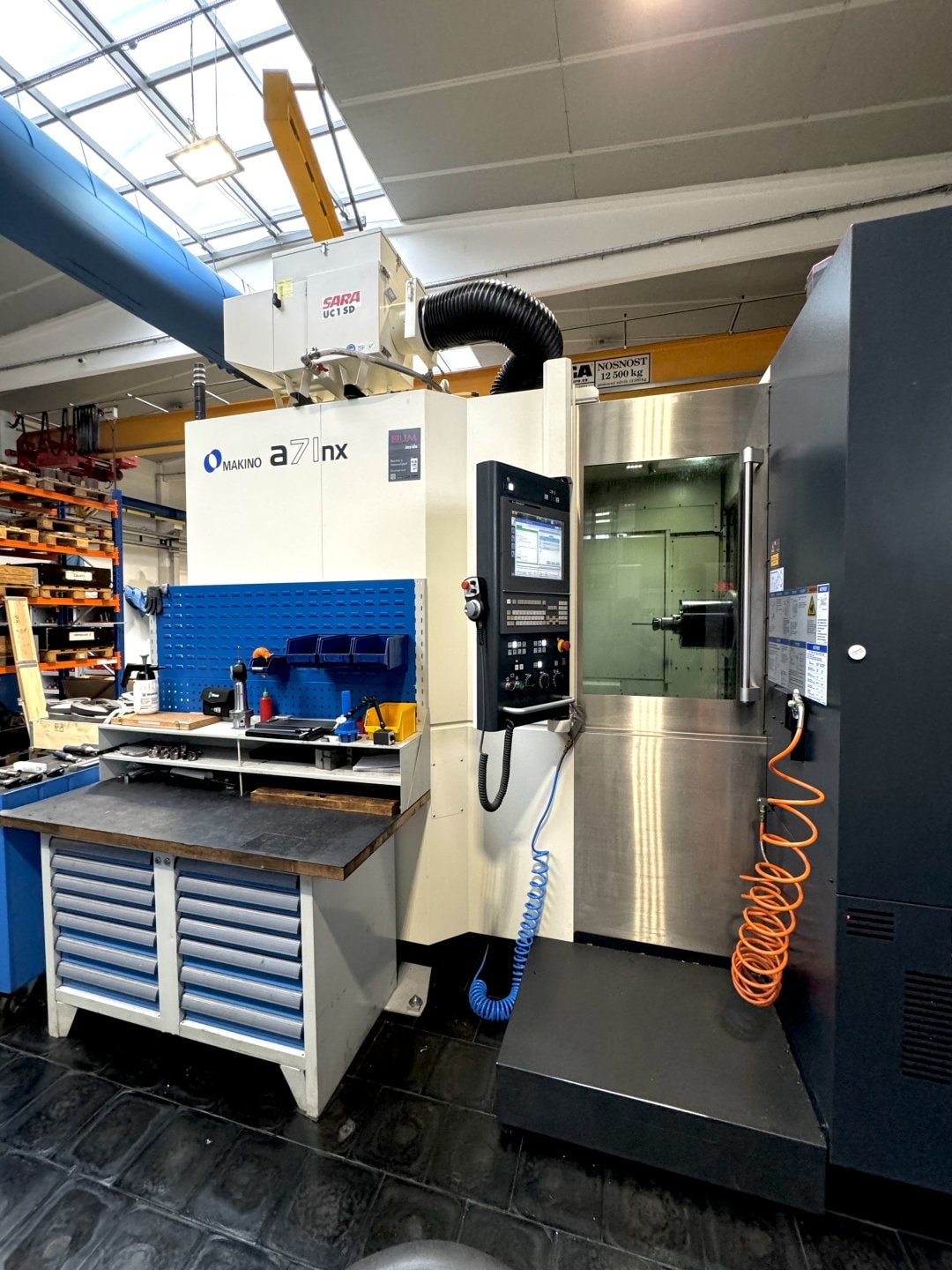

Makino a71nx
is a high performance horizontal CNC machining centre designed for efficient and accurate machining. The machine is designed with an emphasis on high cutting performance, reliability and long-term accuracy. The robust casting structure and large linear roller guides ensure stability and efficient use of the entire work area. The advanced CNC control system enables smooth machining of even spatially complex shapes based on data from 3D CAM programs. a71nx shares the advanced technologies of the Makino nx family to increase productivity and contribute to reduced production times.
| Technical data Makino a71nx | |
|---|---|
| Spindle speed | 10,000 rpm |
| X-axis | 800 mm |
| Y axis | 750 mm |
| Z axis | 830 mm |
| Clamping surface of the table | 500 x 500 mm |
| Maximum table load capacity | 1 000 kg |

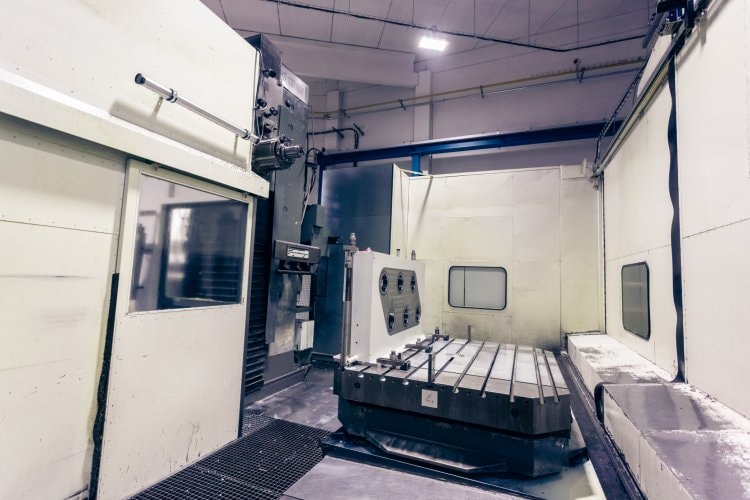

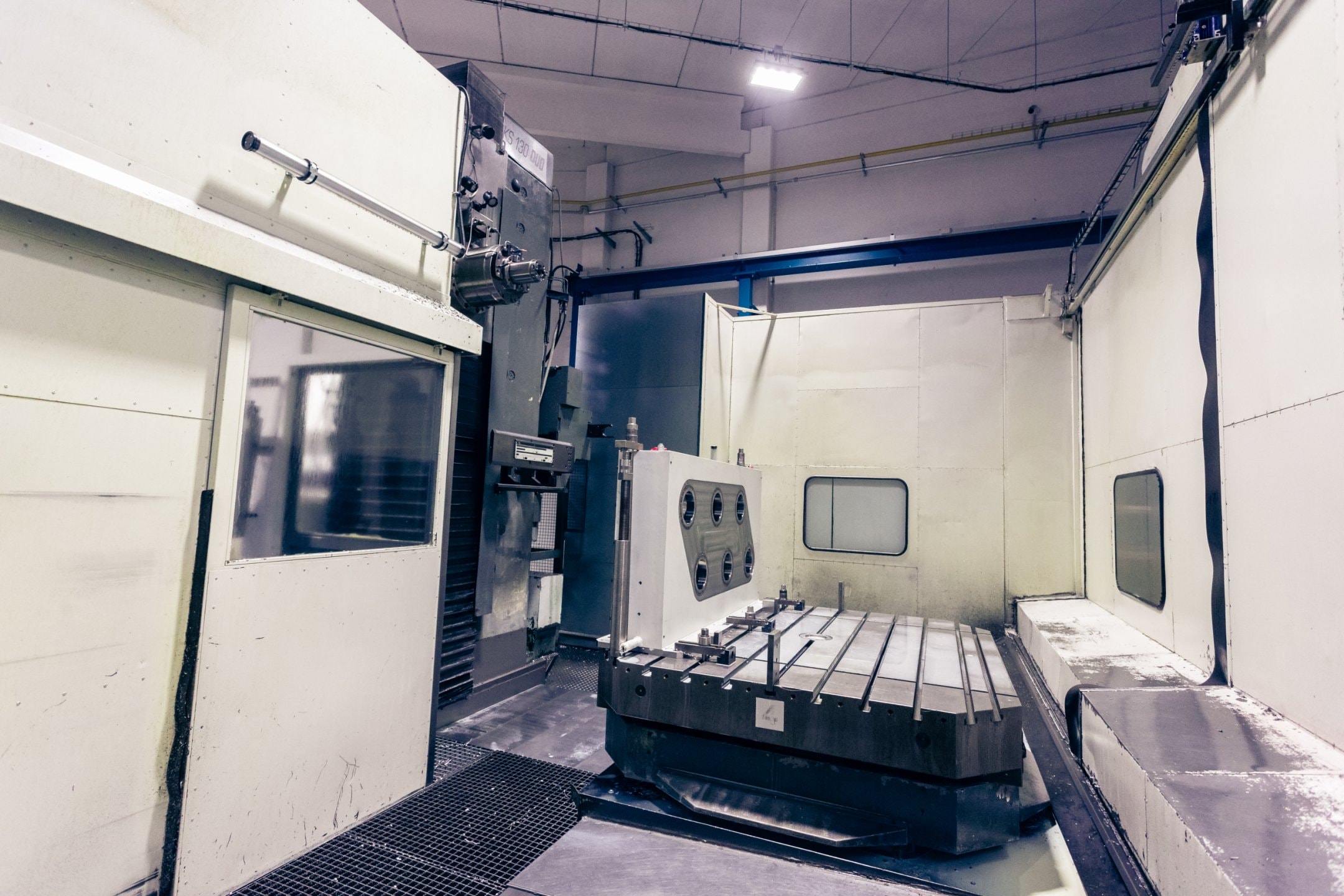

WHN 130 MC - double pallet
Horizontal boring machine meeting the needs of modern progressive technology and offering the possibility of efficient machining with high cutting performance and high precision. Due to its efficiency, it is designed for demanding production with very complex technological processes. The machine's modular design offers a wide choice of variations in all parameters, allowing the selection of the optimum design to meet the specific needs of its machining technology. Universal machine for machining non-rotating larger and heavier workpieces in grey cast iron, steel castings and steel.
| Technical data WHN 130 MC | |
|---|---|
| Spindle working diameter | 130 mm |
| X axis | 3 000 mm |
| Y axis | 2 500 mm |
| Z axis | 1 250 mm |
| Spindle extension (W) | 600 mm |
| Pallet clamping area | 1 800 x 1 600 mm |
| Maximum workpiece weight | 8 000 kg |

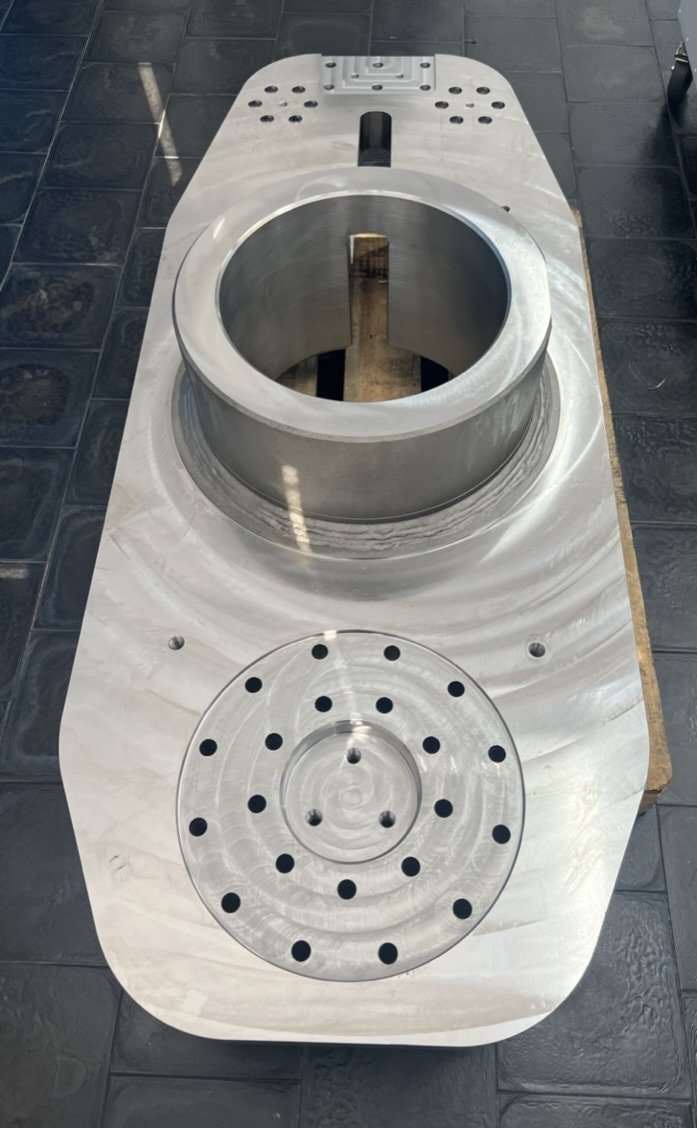

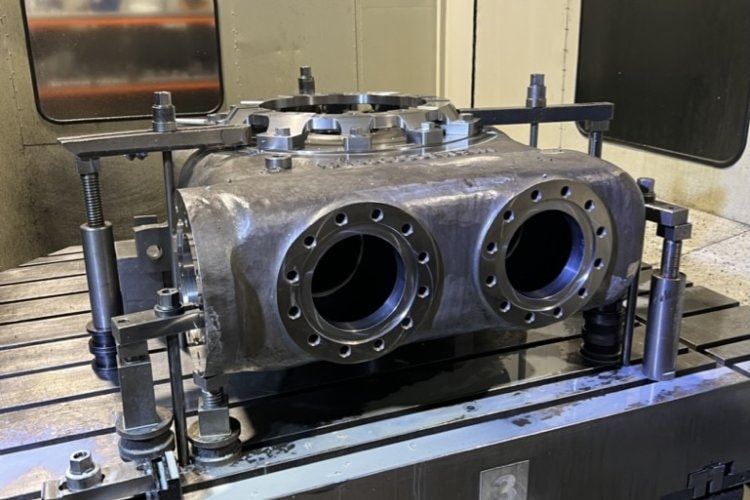

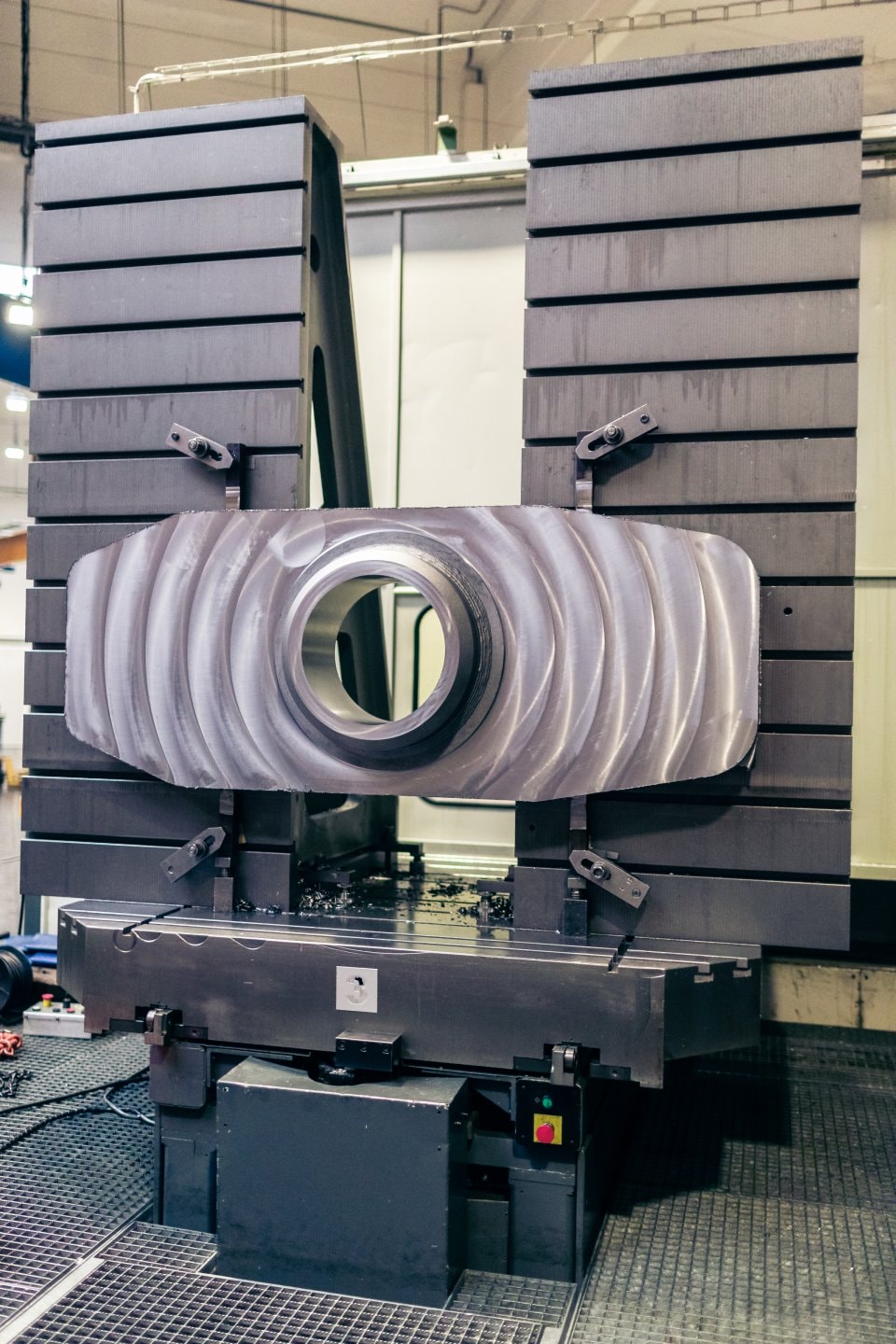

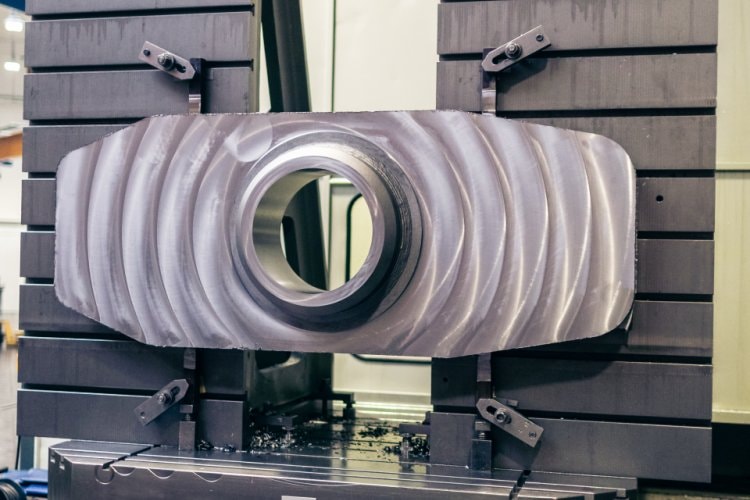

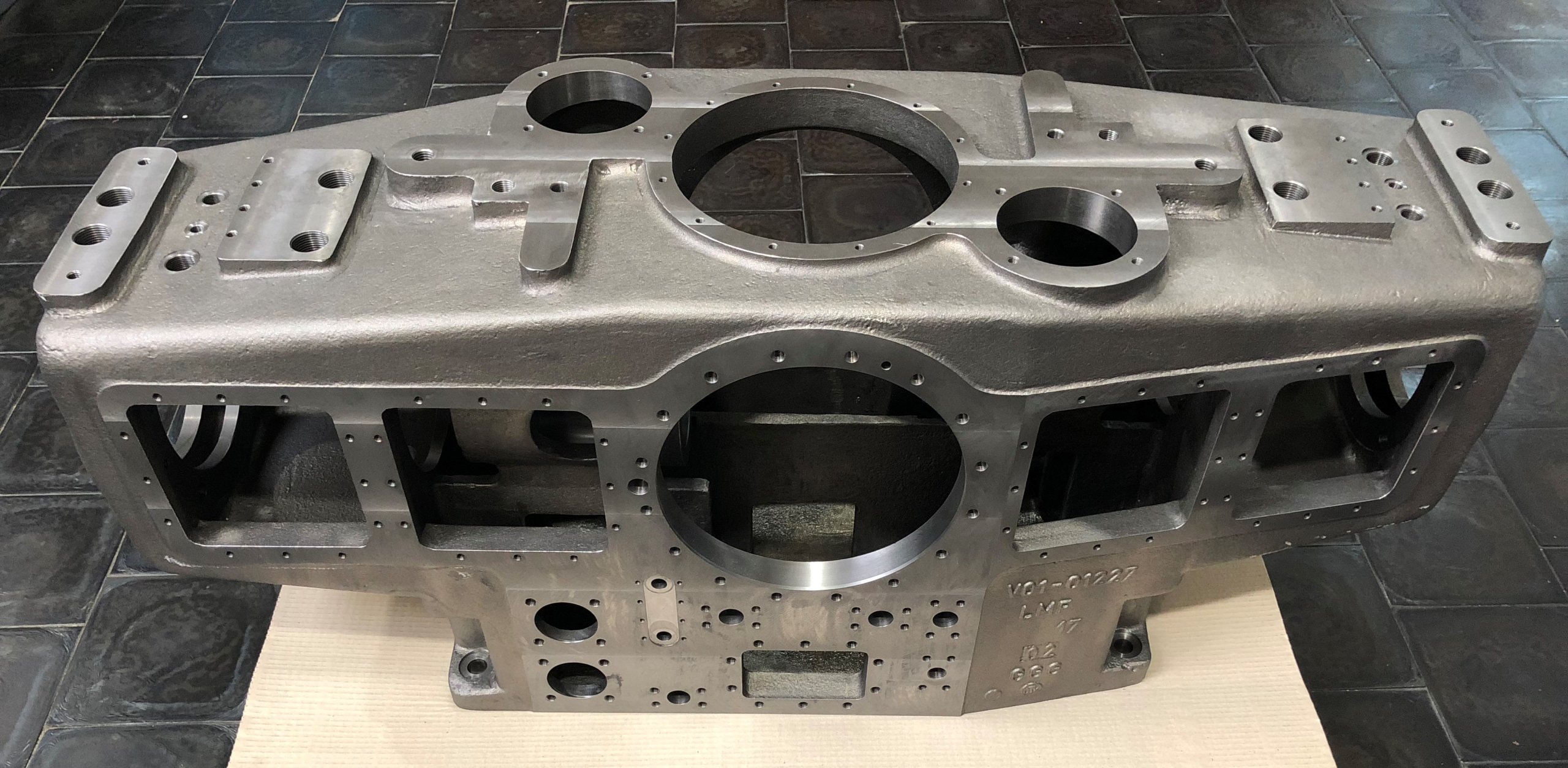

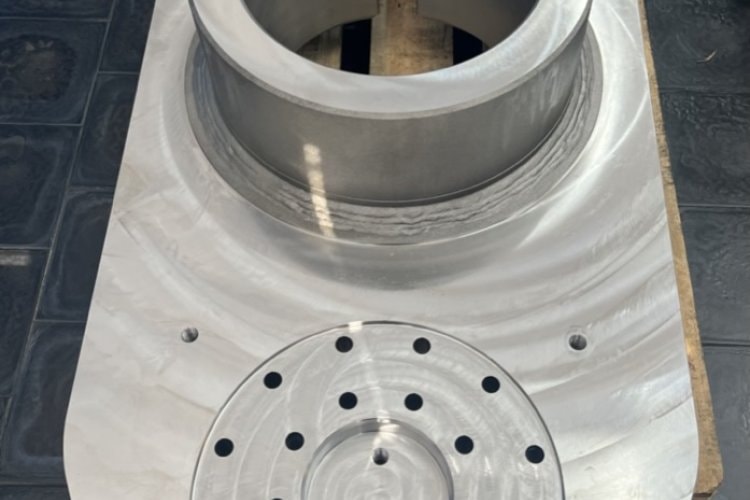

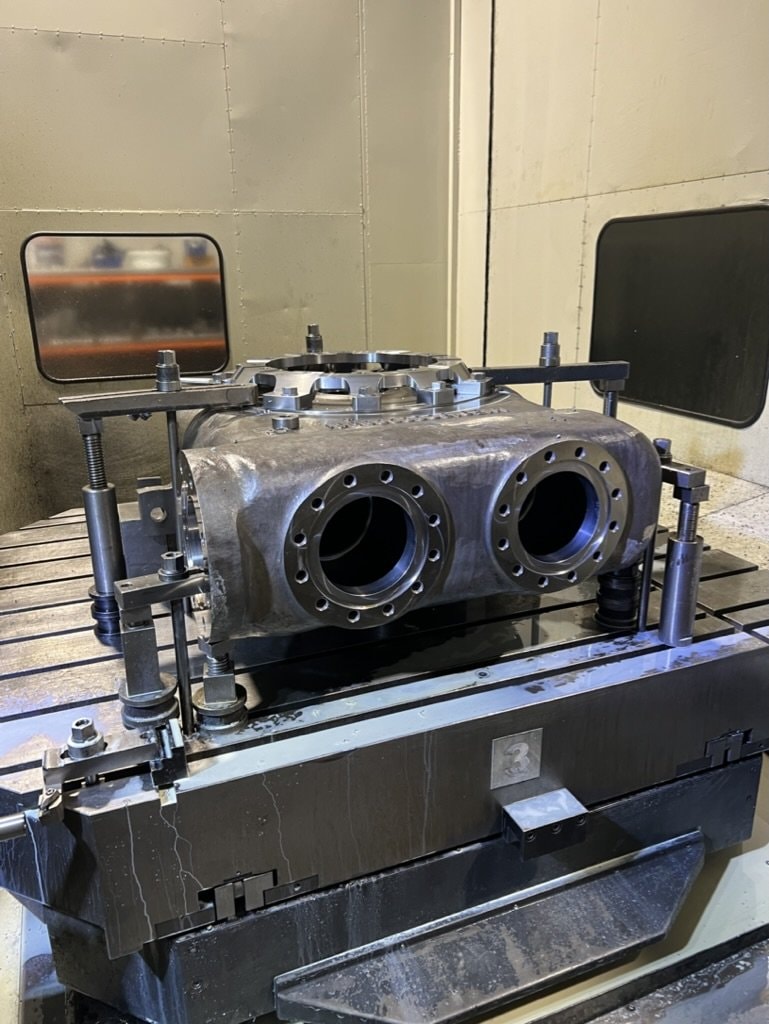

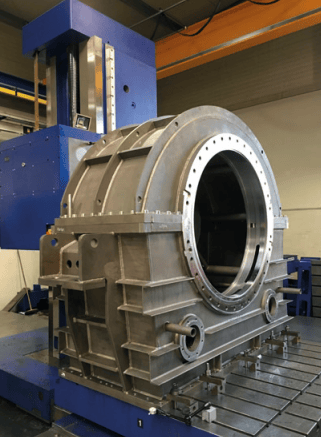

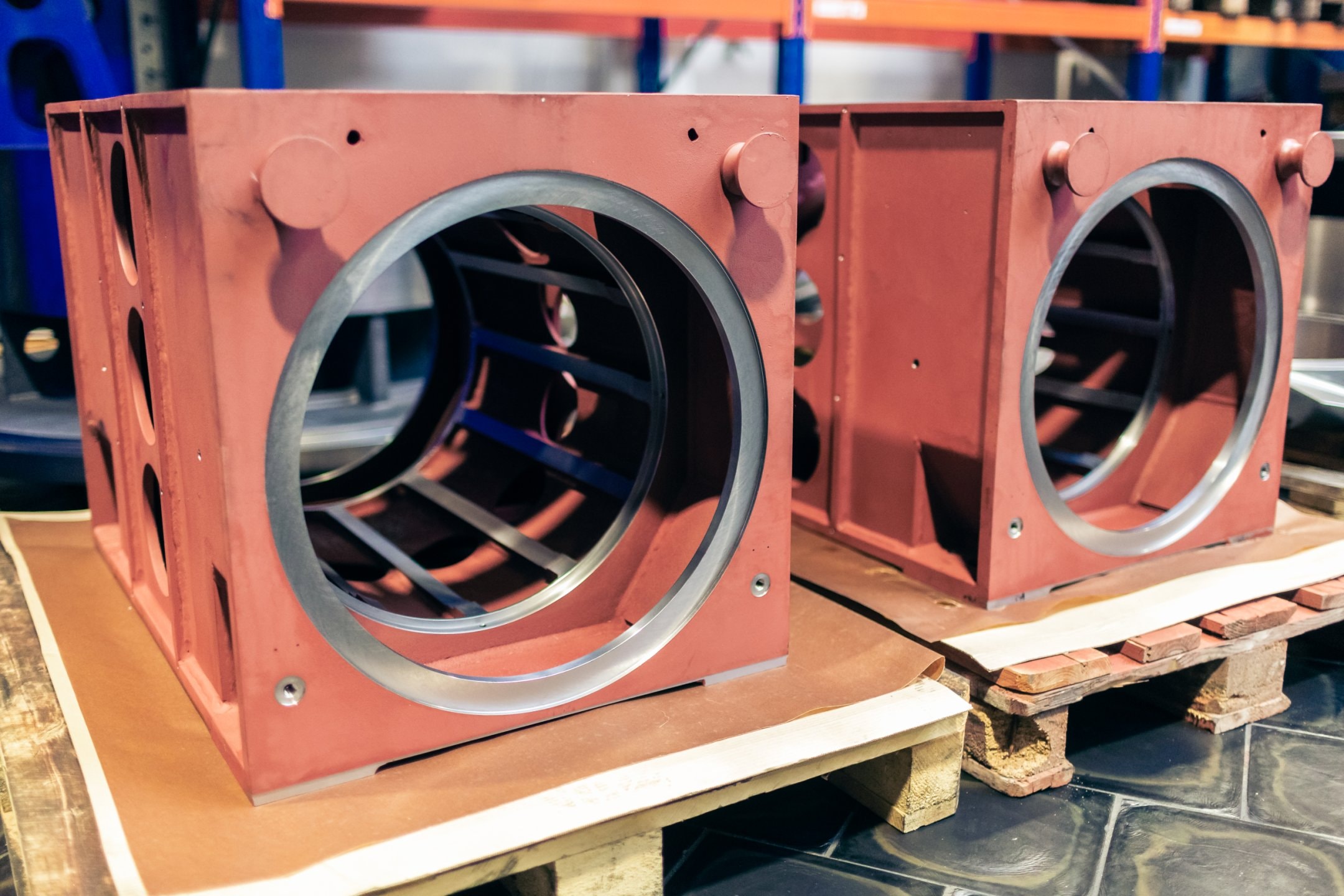

Sample products
