3D measuring machine

3D measuring machine

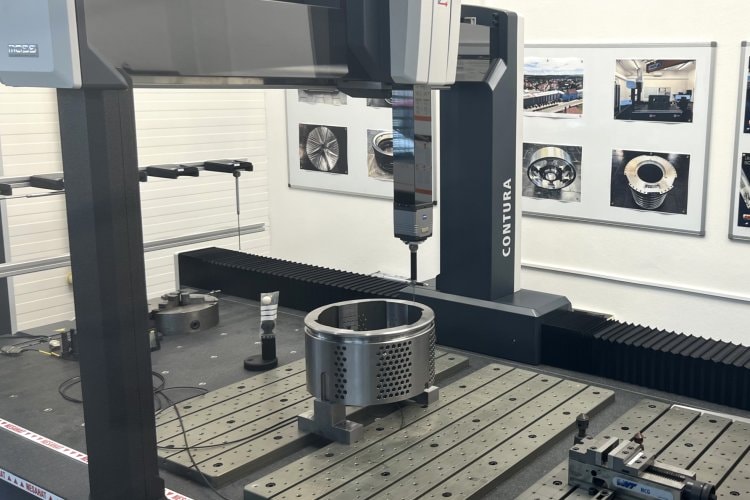

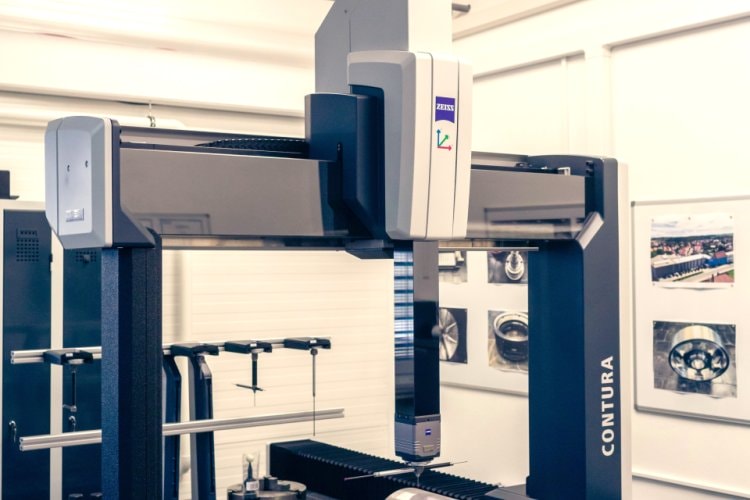

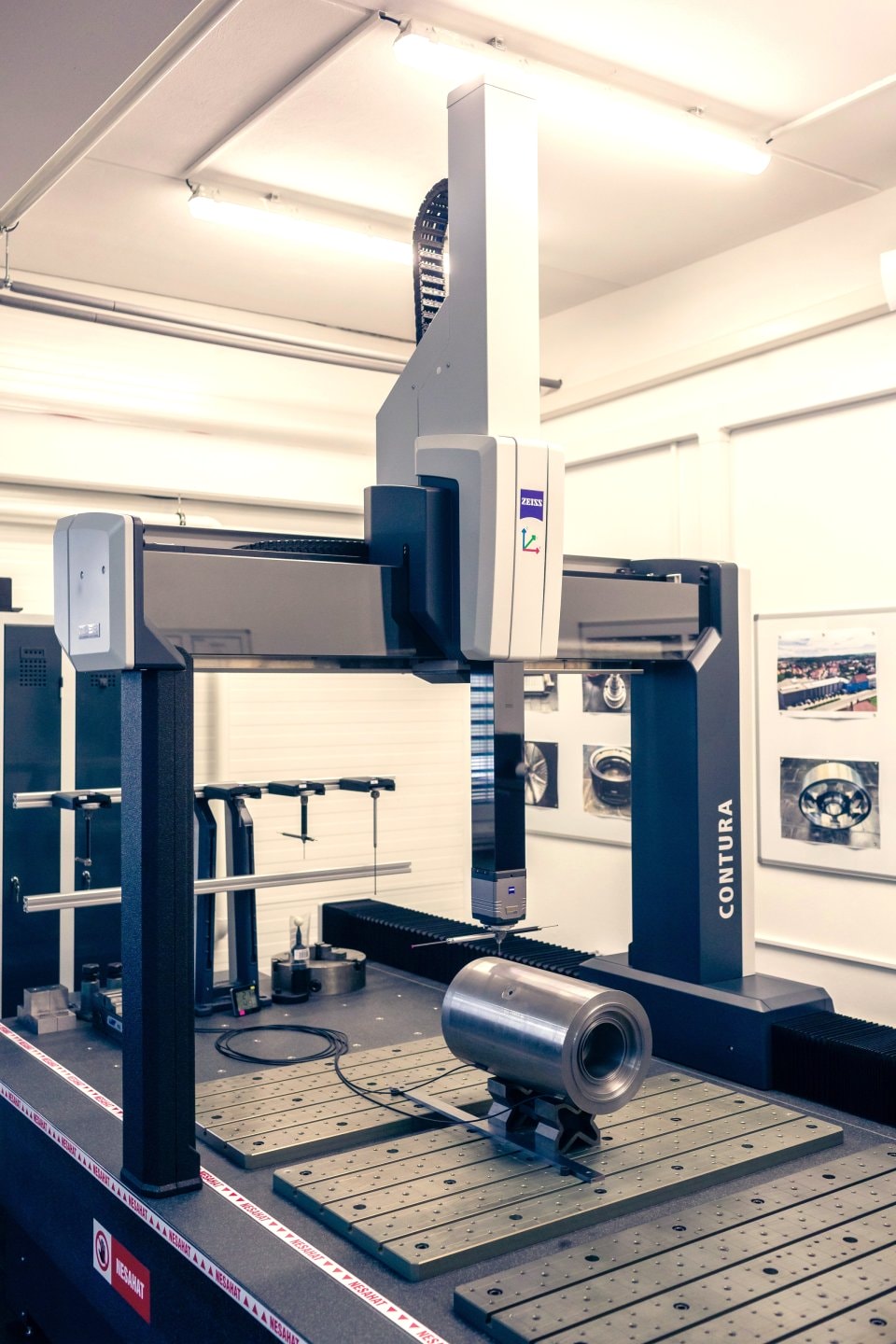

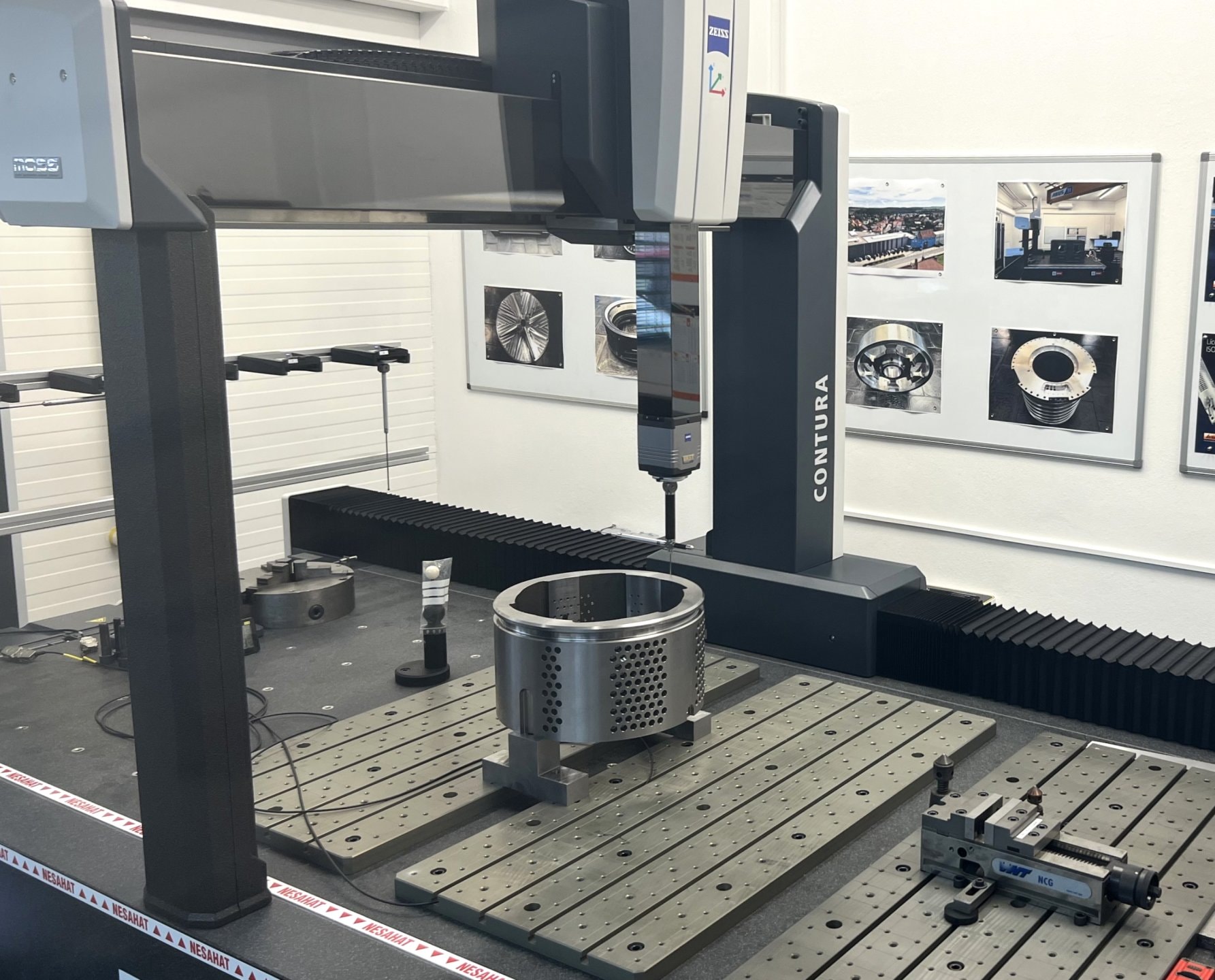

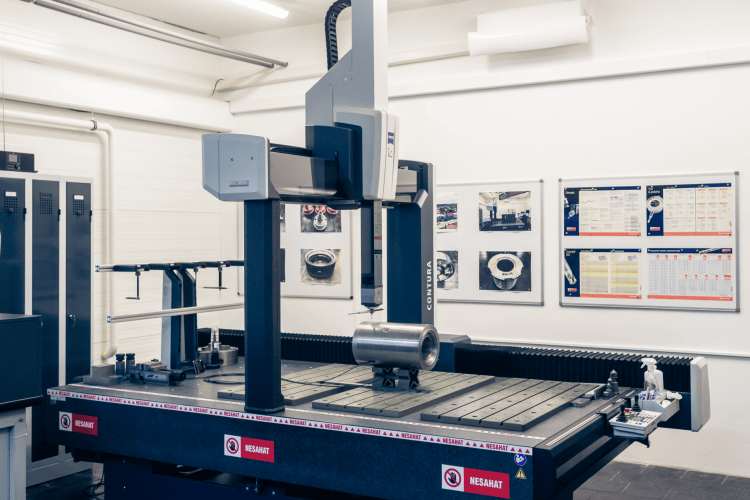

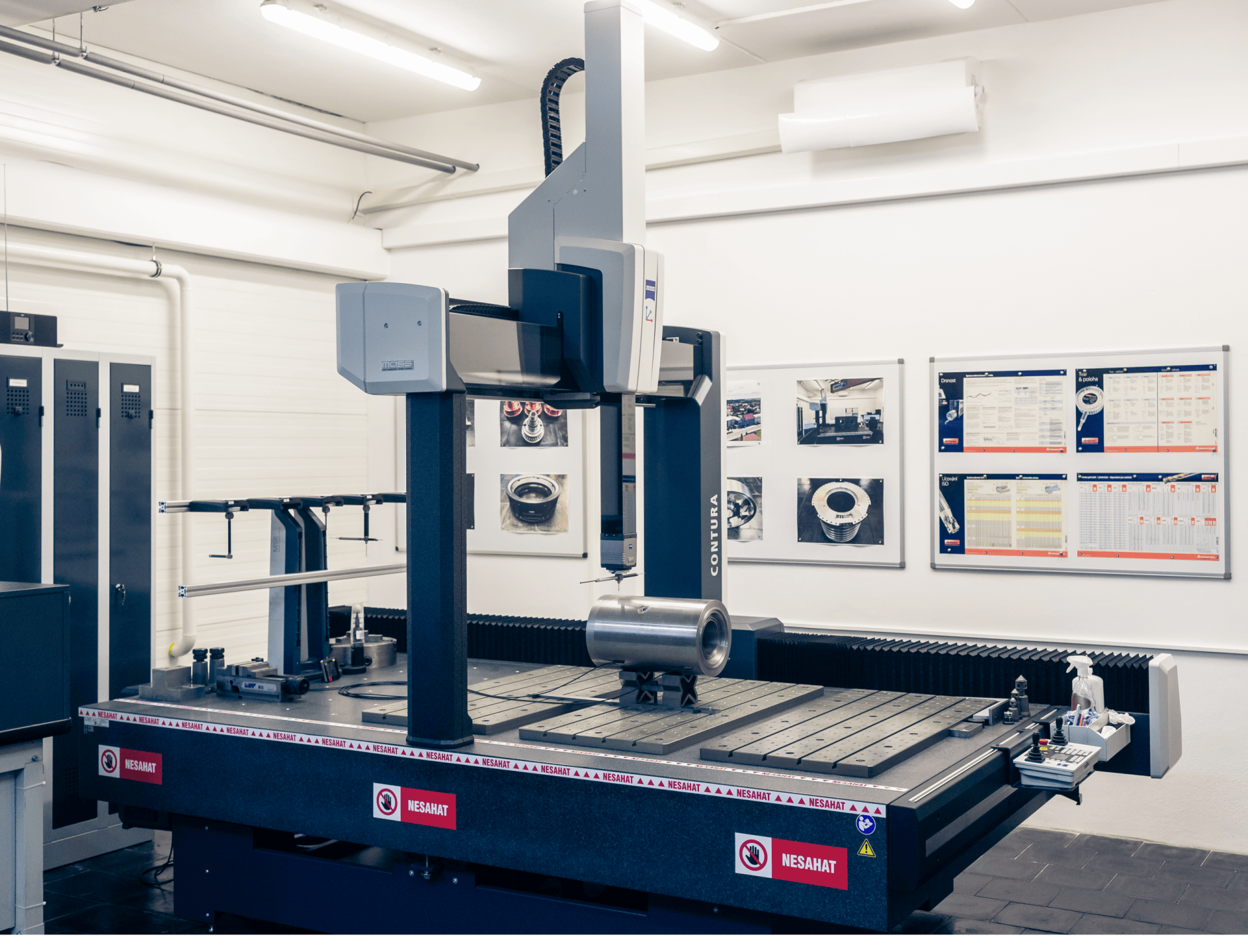

Carl Zaiss Contura 12/24/8

To ensure product quality and production stability, we have a universal 3D coordinate measuring machine from Carl Zaiss.
Using a 3D CAD design model of the part, the machine ensures high accuracy of measurement of geometric dimensions and shape accuracy prescribed on the drawing documentation, including the possibility of issuing a measurement report either in electronic or paper form.
The parts can also be measured by manual scanning of the measuring points.



Technical data
Table clamping surface
1 200 x 2 400 mm
Measuring range X-axis
1200 mm
Measuring range Y axis
2400 mm
Measuring range Z axis
800 mm
Maximum workpiece weight
1 200 kg

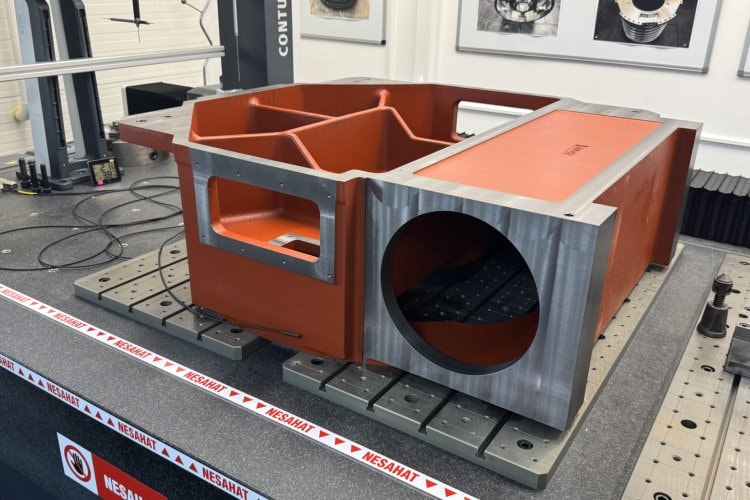

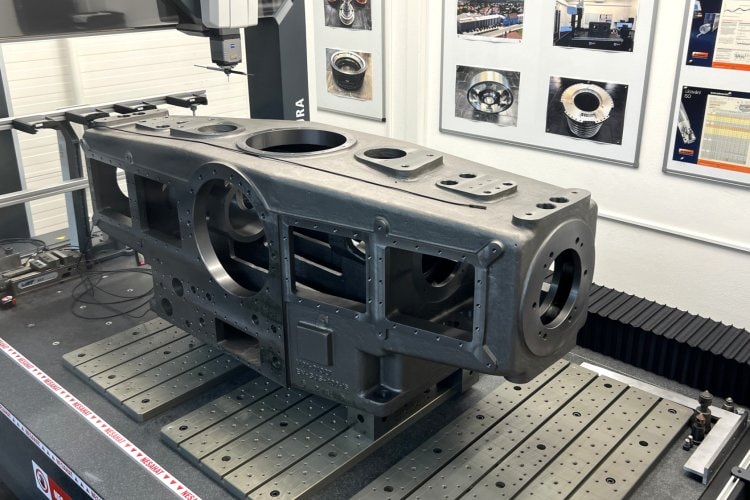

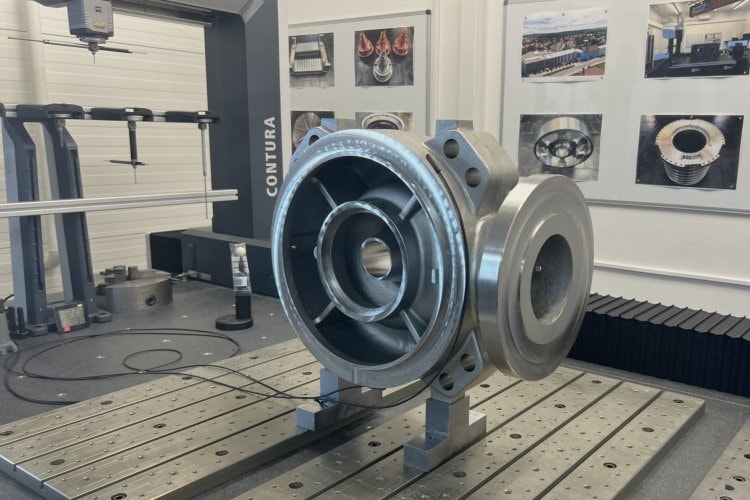

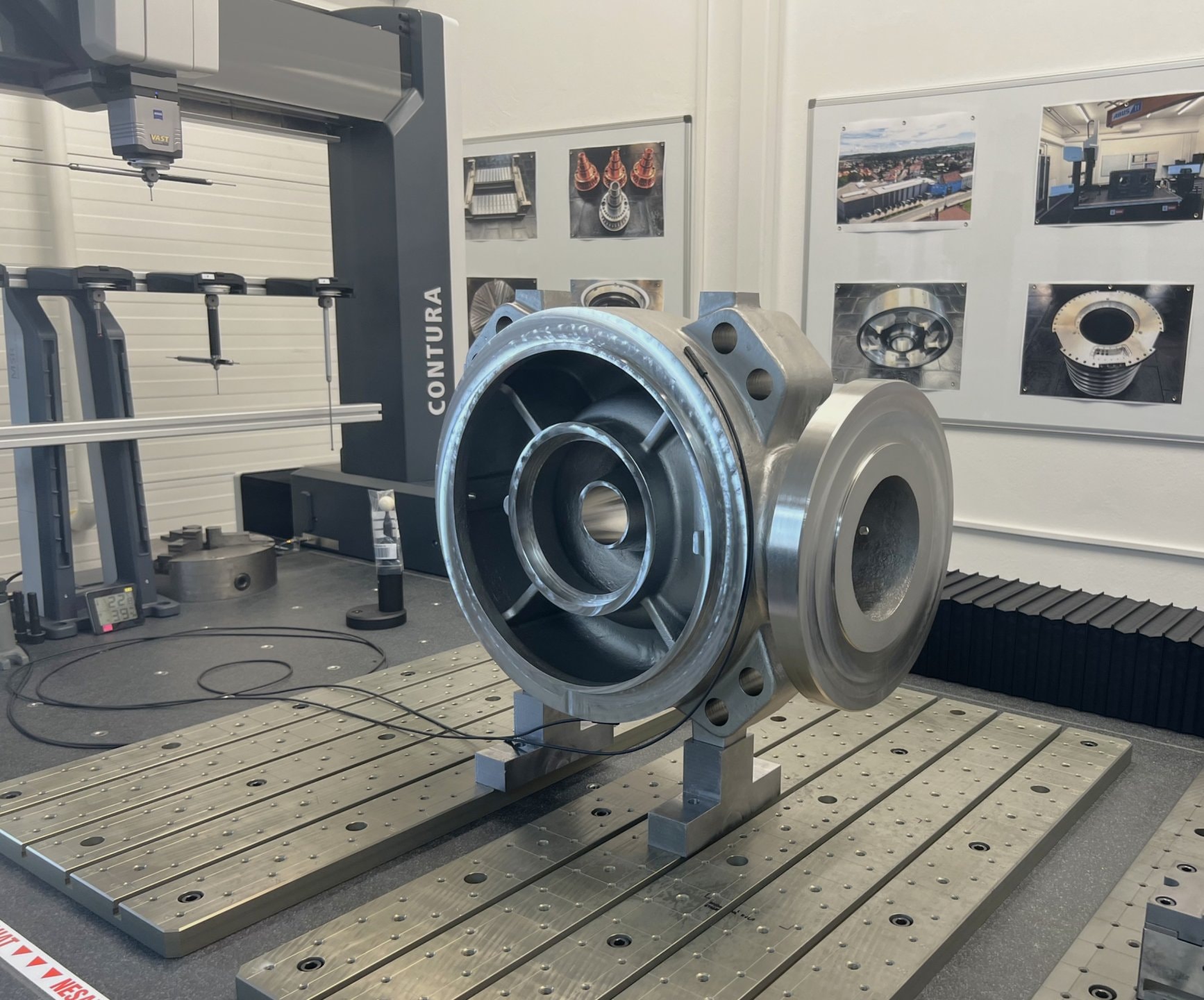

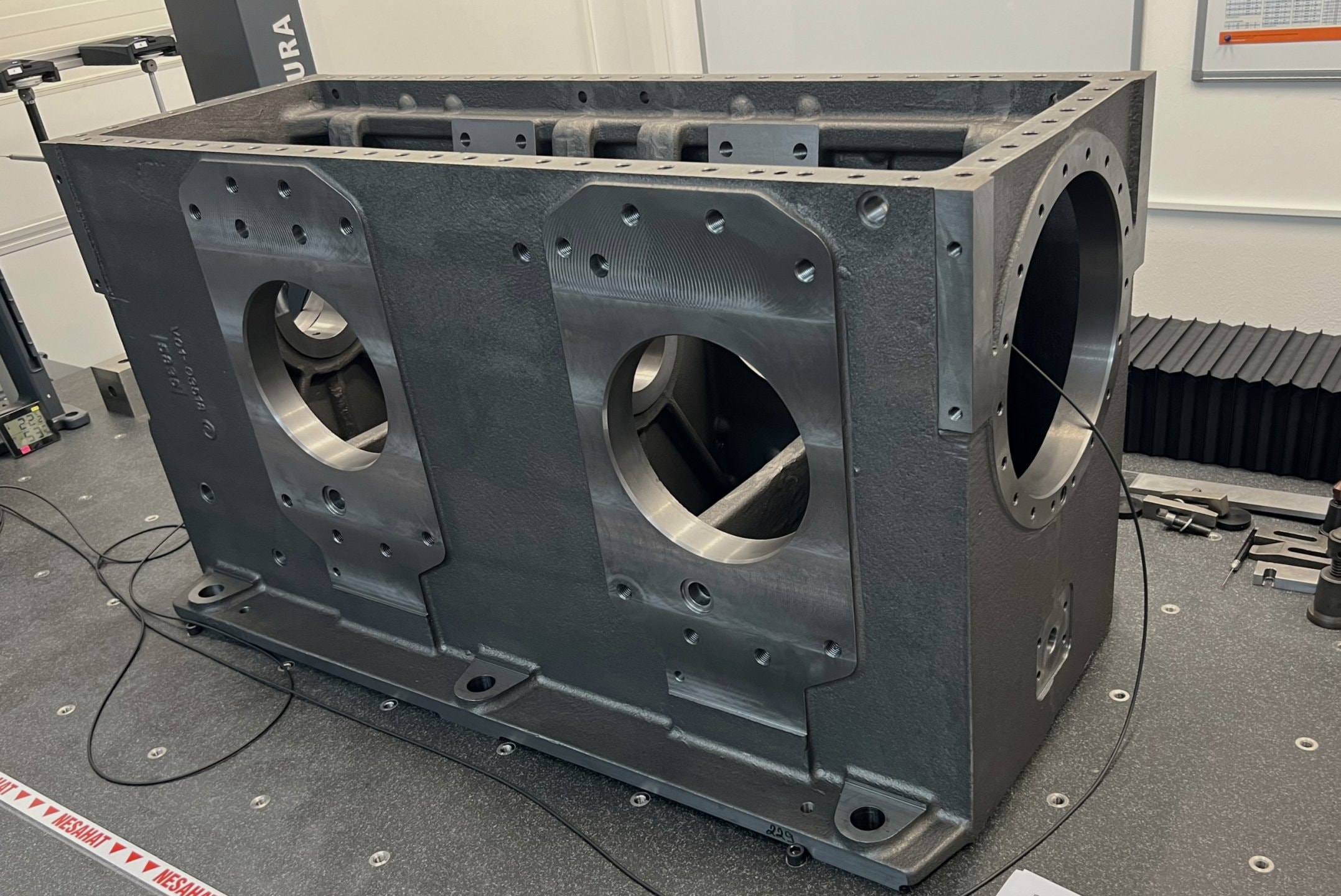

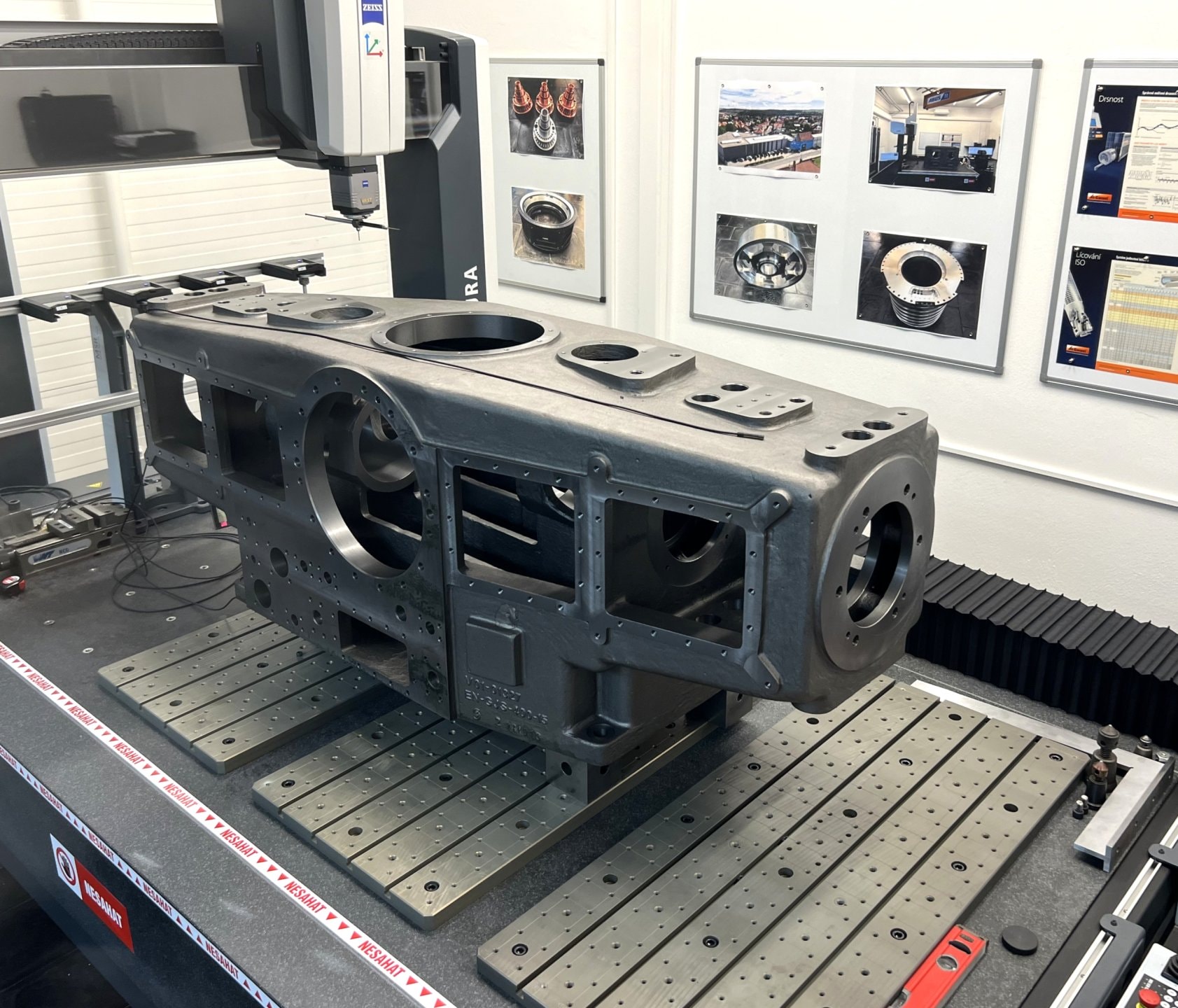

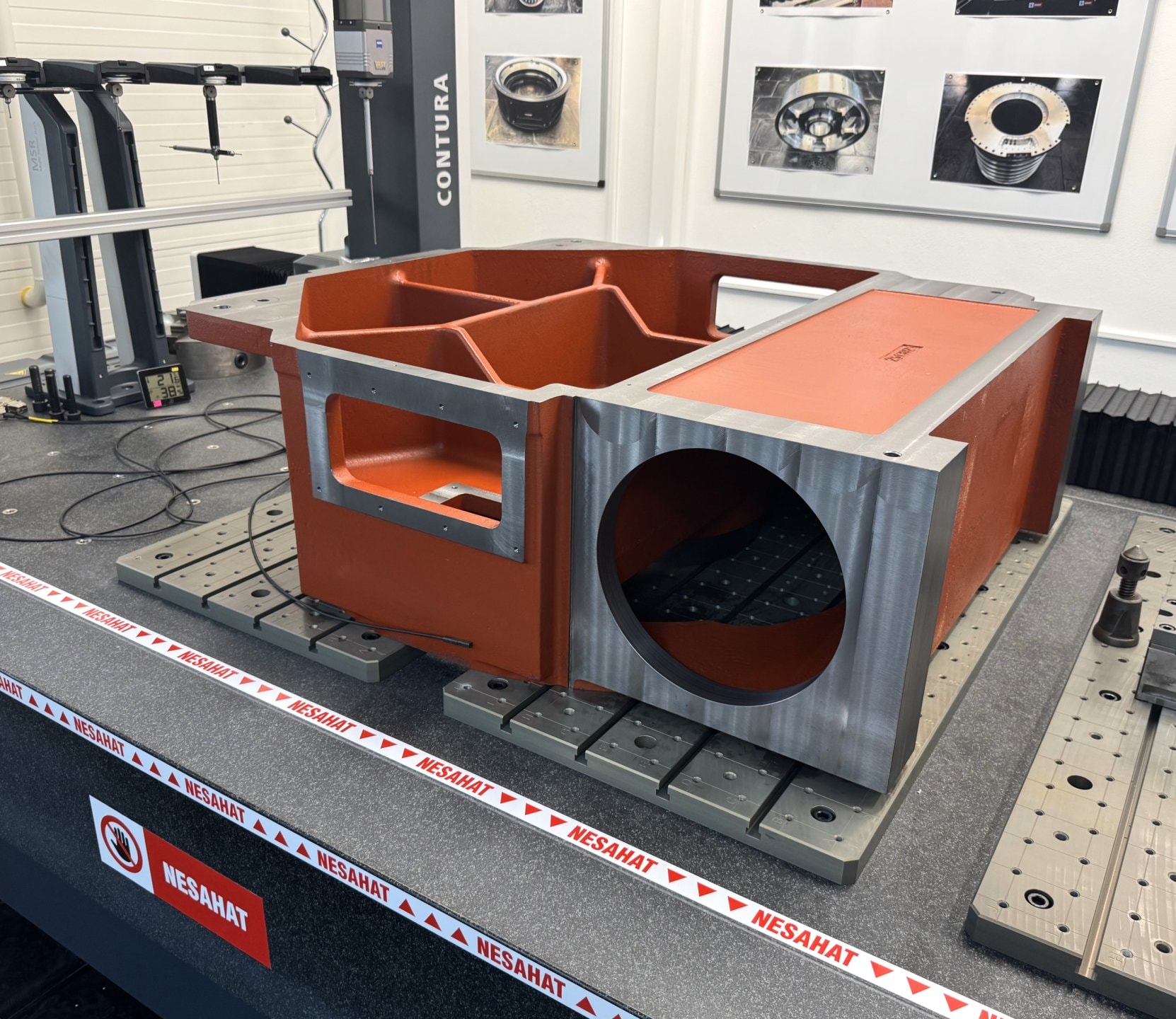

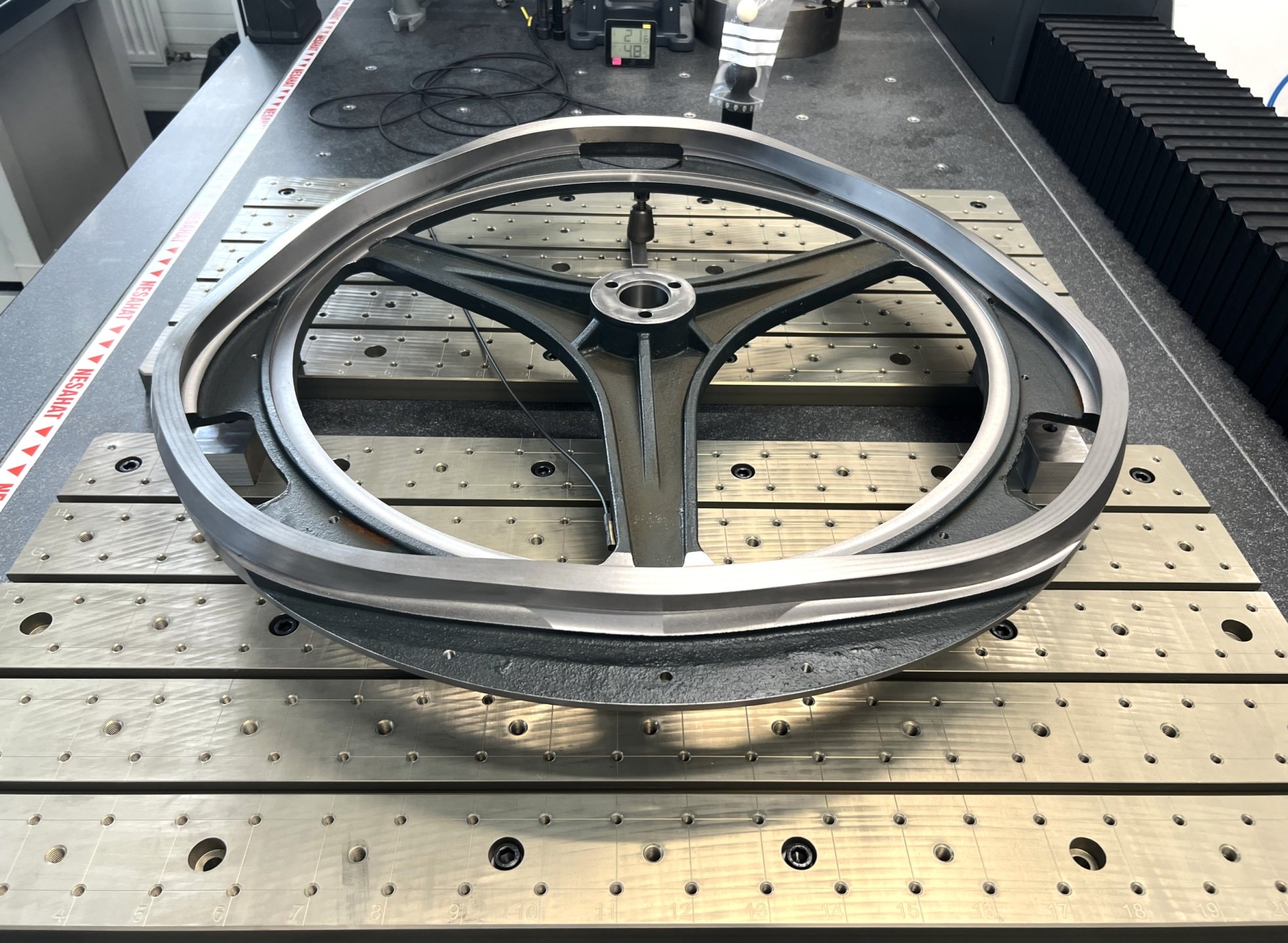

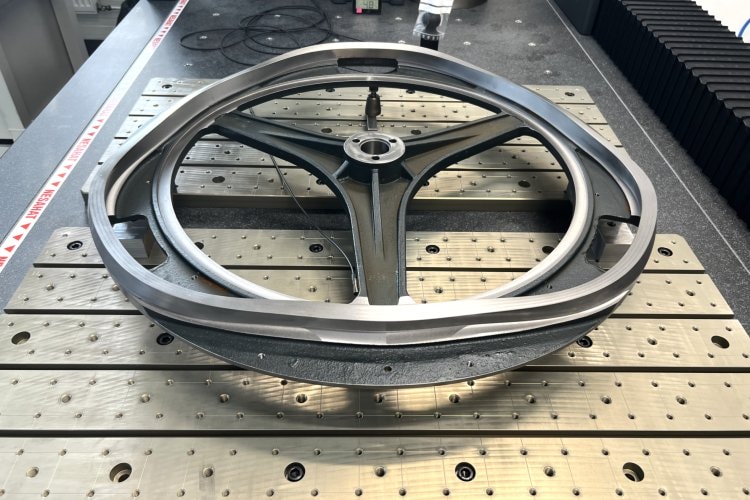

Sample products
